Parallel genetic algorithms were developed to speed up the computation by harnessing the power of parallel computers. Three different models for parallel genetic algorithms exist: the global model, the diffusion model and the migration model. The global model employs the inherent parallelism of genetic algorithms (population of individuals). The diffusion model handles every individual separately and selects the mating partner in a local neighbourhood similar to local selection. Thus, a diffusion of information through the population takes place.
The migration model divides the population in multiple subpopulations. These subpopulations evolve independently from each other for a certain number of generations (isolation time). After the isolation time a number of individuals is distributed between the subpopulations (migration). The number of exchanged individuals (migration rate), the selection method of the individuals for migration and the scheme of migration determines how much genetic diversity can occur in the subpopulations and the exchange of information between subpopulations.
The parallel implementation of the migration model showed not only a speedup in computation time, but it also needed less objective function evaluations when compared to a single population algorithm. So, even for a single processor computer, implementing the parallel algorithm in a serial manner (pseudo-parallel) delivers better results (the algorithm finds the global optimum more often or with less function evaluations).
The selection of the individuals for migration can take place:
Many possibilities exist for the structure of the migration of individuals between subpopulations. For example, migration may take place:

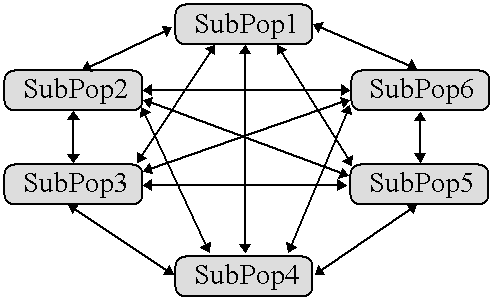

Fig. 6: Unrestricted migration topology (Complete net topology)
The most general migration strategy is that of unrestricted migration (complete net topology). Here, individuals may migrate from any subpopulation to another. For each subpopulation, a pool of potential immigrants is constructed from the other subpopulations. The individual migrants are then uniformly at random determined from this pool.
Figure 7 gives a detailed description for the unrestricted migration scheme for 4 subpopulations with fitness-based selection. Subpopulations 2, 3 and 4 construct a pool of their best individuals (fitness-based migration). 1 individual is uniformly at random chosen from this pool and replaces the worst individual in subpopulation 1. This cycle is performed for every subpopulation. Thus, it is ensured that no subpopulation will receive individuals from itself.

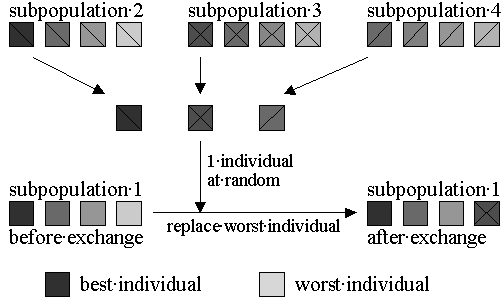

Fig. 7: Scheme for migration of individuals between subpopulations
The most basic migration scheme is the ring topology. Here individuals are transferred between directionally adjacent subpopulations. For example, individuals from subpopulation 6 migrate only to subpopulation 1 and individuals from subpopulation 1 only migrate to subpopulation 2.

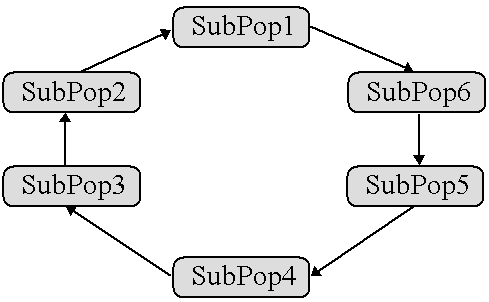

Fig. 8: Ring migration topology
A similar strategy to the ring topology is the neighbourhood migration of figure 9. Like the ring topology, migration is made only between nearest neighbours. However, migration may occur in either direction between subpopulations. For each subpopulation, the possible immigrants are determined, according to the desired selection method, from adjacent subpopulations and a final selection is made from this pool of individuals (similar to figure 7).

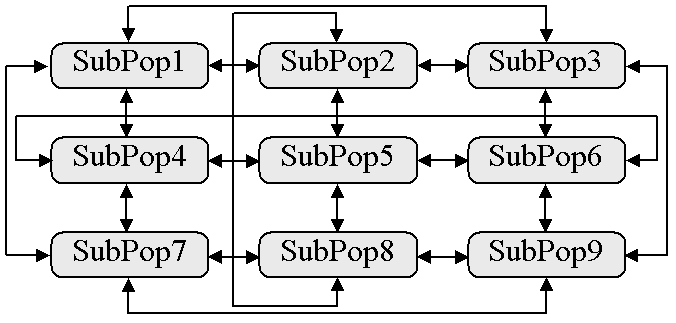

Fig. 9: Neighbourhood migration topology (2-D implementation)
Figure 9 shows a possible scheme for a 2-D implementation of the neighbourhood topology. Sometimes this structure is called a torus.
With the Multipopulation genetic algorithm, for every function tested better results were obtained than for a single population algorithm with proportionally more individuals. Similar results are reported in [13], [16], [20], [22], [23], [24] and [25].
